* Support HDMI 1080p 60Hz.

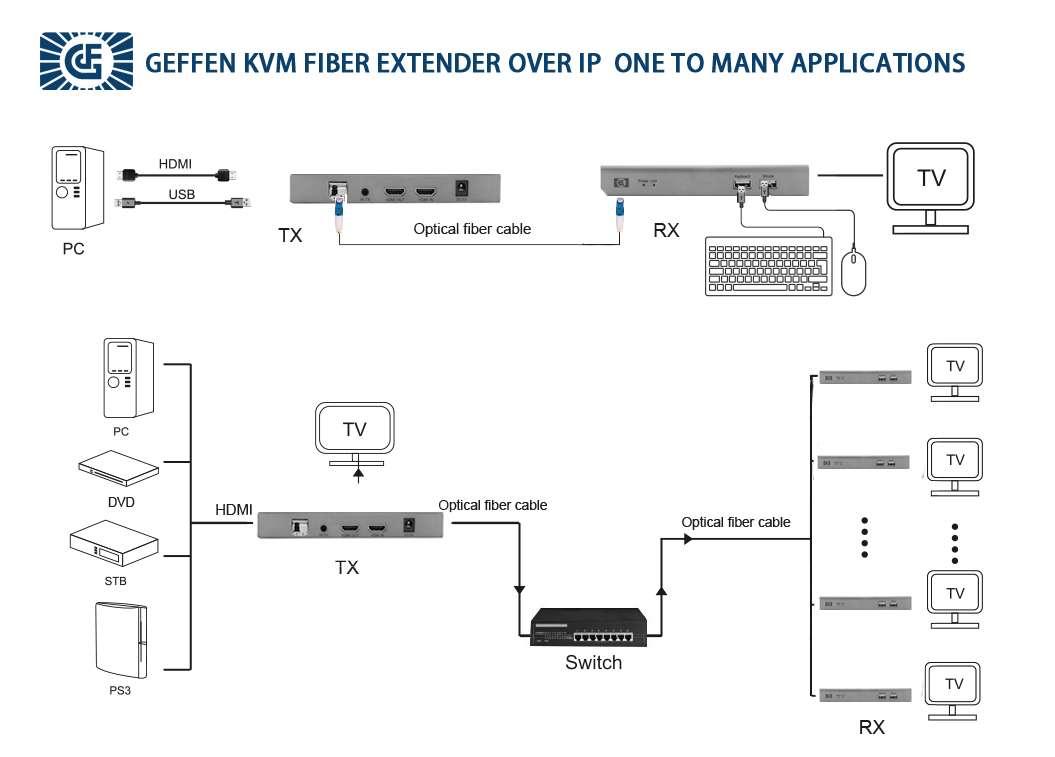

* It supports one-to-one or one to many transmission mode and can pass through fiber
switch.
* Support single-mode single fiber LC, SC interface module, factory
default is LC interface module.
* TX side supports HDMI loop out.
* Support KVM function.
* Support IP transmission.
* Pure hardware design, plug and play, no need to install additional software.
HDMI input........................................................................................ 1080p / 720p / 480p
HDMI output ......................................................................................1080p / 720p / 480p
Optical fiber wavelength...........................................1310nm/1550nm；1550nm/1310nm
Maximum power consumption......................................................................TX4w; RX3W
Power adapter specification................. Input (50 Hz, 60 Hz) 100v-240 V; Output 5V / 1A
Operating temperature range .......................................................................(0 to + 45 ℃)
Working range ........................................................ 5% to 90% RH（non-condensation）
1. Connect the HDMI signal to the HDMI Transmitter with HDMI cable
2. Connect the HDMI receiver to the HDTV display with HDMI cable
3. Use one fiber cable up to 20km to connect the Fiber-LC type port of Transmitter andReceiver.
4. Connect two pieces of 5V power supply to the transmitter and receiver, power supplyfor the equipment and the LED indicator light on. When Link lamp on, equipment starts normal
